5.实现mqtt转发

说明

举例现在有两个通道需要转发，协议为任意两个采集协议，转发为mqtt转发，功能码为实时数据。

接下来我们用python来实现数据的转发。

创建转发工程

提示

通过python转发将不再创建通道。但需在代码中配置IP，端口参数。

配置mqtt转发IP,PORT参数

使用paho-mqtt模块，使用mqtt_connect定义连接服务器参数。

提示

根据需要，自行按照mqttClient.tls_set()函数添加证书。添加证书后必须执行mqttClient.tls_insecure_set(True)语句。

Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
    #==========================================================
    def mqtt_connect():
        client_id = time.strftime('%Y%m%d%H%M%S', time.localtime(time.time()))
        mqttClient = mqtt.Client(client_id, transport='tcp') #for paho-mqtt==1.6.1
#        mqttClient = mqtt.Client(client_id=client_id,protocol=mqtt.MQTTv311,transport='tcp') #for paho-mqtt==2.1.0
        mqttClient.on_connect = on_connect
        host = "47.97.230.45"
        port = 4020
        mqttClient.username_pw_set("", "")
        mqttClient.tls_set(ca_certs='/data/project/1008-ca.pem', certfile='/data/project/1008.pem', keyfile='/data/project/1008.key')
        mqttClient.tls_insecure_set(True)
        mqttClient.connect(host, port, 60)
        mqttClient.loop_start()
        return mqttClient

加载工程参数

选择需转发的采集通道

创建一个列表，列表中输入需要转发的通道名称，要求字符串格式，并用逗号隔开。根据实际情况自行添加，示例为两个采集通道。如下述片段所示：

Python
1
2
    #==========================================================
    chl_list = ['chal_LQ', 'python采集通道']   # 创建需要转发的通道

取设备参数

首先使用get_dev_count函数得到通道下的设备数量，然后创建相应数量的设备数组，再使用get_dev_array函数取得设备参数。

Python
1
2
3
4
5
6
7
    #==========================================================
    #根据采集通道取其下的设备信息
    dev_count = c4py.get_dev_count(chl_name.encode())
    print("通道名称:"+ chl_name + "; dev count:" + str(dev_count))
    # 创建一个长度为 dev_count 的数组
    device_info_array = (c4py.DeviceInfo * dev_count)()
    c4py.get_dev_array(chl_name.encode(), device_info_array)

取测点参数

首先使用get_tag_count函数得到通道下的设备数量，然后创建相应数量的设备数组，再使用get_tag_array函数取得设备参数。

Python
1
2
3
4
5
6
7
    #==========================================================
    #根据设备取其下的测点信息
    tag_count = c4py.get_tag_count(device_info.dev_name)
    print("设备名称:"+ device_info.dev_name.decode() + ";tag count:"+ str(tag_count))
    # 创建一个长度为 tag_count 的数组
    tag_info_array = (c4py.TagInfo * tag_count)()
    c4py.get_tag_array(device_info.dev_name, tag_info_array)

转发

构造转发报文

通过mqtt接口文档构造消息体。示例中需要的参数有"tp","sn","tm","chl_name","dev"。实际根据所用mqtt的数据格式自行修改。

Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
# 构造mqtt发布数据
def build_send_buff(type, sn):
    dev = []
    chl_list = ['chal_LQ', 'python采集通道']   # 创建需要转发的通道
    # 遍历通道
    for chl_name in chl_list:
        timestr = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime(time.time()))
        #根据采集通道取其下的设备信息
        dev_count = c4py.get_dev_count(chl_name.encode())
        print("通道名称:"+ chl_name + "; dev count:" + str(dev_count))
        # 创建一个长度为 dev_count 的数组
        device_info_array = (c4py.DeviceInfo * dev_count)()
        c4py.get_dev_array(chl_name.encode(), device_info_array)
        #==========================================================
        # 遍历通道下的设备
        for device_info in device_info_array:
            tag_count = c4py.get_tag_count(device_info.dev_name)
            print("设备名称:"+ device_info.dev_name.decode() + ";tag count:"+ str(tag_count))
            # 创建一个长度为 tag_count 的数组
            tag_info_array = (c4py.TagInfo * tag_count)()
            c4py.get_tag_array(device_info.dev_name, tag_info_array)
            tag = []
            # 遍历设备下的测点
            for tag_info in tag_info_array:
                # 获取测点值
                tag_value = ctypes.c_float.from_address(ctypes.addressof(tag_info.p_tag_value.contents)).value
                # 获取测点质量
                tag_qos = ctypes.c_int.from_address(ctypes.addressof(tag_info.p_tag_quality.contents)).value
                if tag_qos == 0:
                    q = 1
                else:
                    q = 0
                tag.append({'name': tag_info.base.tag_name.decode(), 'q': q, 'v': tag_value})
            dev.append({'name': device_info.dev_name.decode(), 'tag': tag})
    send_buff = {'tp': type,'sn': sn, 'tm': timestr, 'chl_name': "python转发通道", 'dev': dev}
    return send_buff

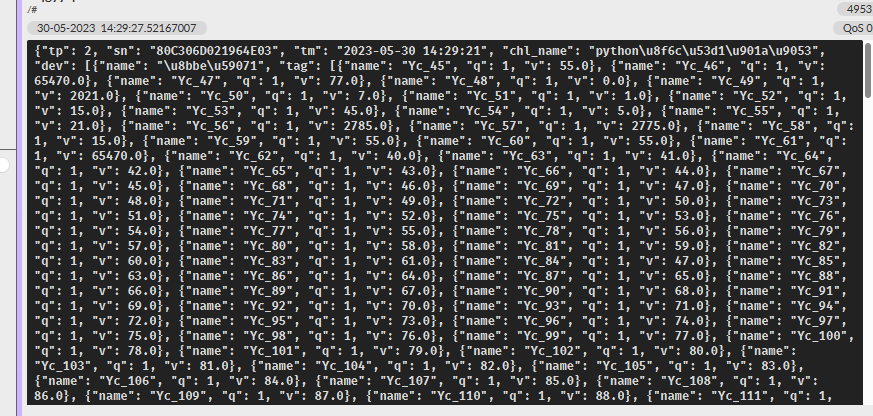

用mqtt.fx连接服务器后订阅到的消息如下图：

其它优化

1、原本读取到的质量为好时值为0，质量坏时值为100。现改成好为1，坏为0.

Python
1
2
3
4
5
6
7
    # 获取测点质量
    tag_qos = ctypes.c_int.from_address(ctypes.addressof(tag_info.p_tag_quality.contents)).value
    if tag_qos == 0:
        q = 1
    else:
        q = 0
    tag.append({'name': tag_info.base.tag_name.decode(), 'q': q, 'v': tag_value})

2、注册系统信号处理函数，来接收程序退出消息，以释放资源。

Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
#系统信号
app_exit_signal = 0

#系统信号处理函数
def handle_sigterm(signum, frame):
    global app_exit_signal
    app_exit_signal = signum

# 注册信号处理函数
signal.signal(signal.SIGTERM, handle_sigterm)
signal.signal(signal.SIGUSR1, handle_sigterm)

c4py.py_load_so()
c4py.global_init()
while True:
    #do something
    if app_exit_signal != 0:
        print("app exit signal: [{}]".format(app_exit_signal))
        break
#释放资源
c4py.global_release()

完整源码

Python
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
import ctypes
import c4py
import signal
import ptvsd
import paho.mqtt.client as mqtt
import json
import time

# 系统信号
app_exit_signal = 0

# 系统信号处理函数
def handle_sigterm(signum, frame):
    global app_exit_signal
    app_exit_signal = signum


# 回调函数，获取mqtt连接状态
def on_connect(client, userdata, flags, rc):
    rc_status = ["连接成功", "协议版本错误", "无效客户端", "服务器无法使用", "用户名密码错误", "无授权"]
    result = "connet:" + rc_status[rc]
    if rc == 1:
        # 将通道状态设置为正常
        print("connect:" + rc_status[rc])
        c4py.set_chl_status(chl_name.encode(),c4py.RUN_STAT_NORMAL)
    else:
        print("connect:" + rc_status[rc])

# 连接服务器
def mqtt_connect():
    client_id = time.strftime('%Y%m%d%H%M%S', time.localtime(time.time()))
    mqttClient = mqtt.Client(client_id, transport='tcp') #for paho-mqtt==1.6.1
#    mqttClient = mqtt.Client(client_id=client_id,protocol=mqtt.MQTTv311,transport='tcp') #for paho-mqtt==2.1.0
    mqttClient.on_connect = on_connect
    host = "47.97.230.45"
    port = 4020
    mqttClient.username_pw_set("", "")
    # mqttClient.tls_insecure_set(True)
    mqttClient.tls_set(ca_certs='/data/project/1008-ca.pem', certfile='/data/project/1008.pem', keyfile='/data/project/1008.key')
    mqttClient.tls_insecure_set(True)
    mqttClient.connect(host, port, 60)
    mqttClient.loop_start()

    return mqttClient


# 构造mqtt发布数据
def build_send_buff(type, sn):
    dev = []
    chl_list = ['chal_LQ', 'python采集通道']   # 创建需要转发的通道
    # 遍历通道
    for chl_name in chl_list:
        timestr = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime(time.time()))
        #根据采集通道取其下的设备信息
        dev_count = c4py.get_dev_count(chl_name.encode())
        print("通道名称:"+ chl_name + "; dev count:" + str(dev_count))
        # 创建一个长度为 dev_count 的数组
        device_info_array = (c4py.DeviceInfo * dev_count)()
        c4py.get_dev_array(chl_name.encode(), device_info_array)
        #==========================================================
        # 遍历通道下的设备
        for device_info in device_info_array:
            tag_count = c4py.get_tag_count(device_info.dev_name)
            print("设备名称:"+ device_info.dev_name.decode() + ";tag count:"+ str(tag_count))
            # 创建一个长度为 tag_count 的数组
            tag_info_array = (c4py.TagInfo * tag_count)()
            c4py.get_tag_array(device_info.dev_name, tag_info_array)
            tag = []
            # 遍历设备下的测点
            for tag_info in tag_info_array:
                # 获取测点值
                tag_value = ctypes.c_float.from_address(ctypes.addressof(tag_info.p_tag_value.contents)).value
                # 获取测点质量
                tag_qos = ctypes.c_int.from_address(ctypes.addressof(tag_info.p_tag_quality.contents)).value
                if tag_qos == 0:
                    q = 1
                else:
                    q = 0
                tag.append({'name': tag_info.base.tag_name.decode(), 'q': q, 'v': tag_value})
            dev.append({'name': device_info.dev_name.decode(), 'tag': tag})
    send_buff = {'tp': type,'sn': sn, 'tm': timestr, 'chl_name': "python转发通道", 'dev': dev}
    return send_buff



if __name__ == "__main__":
    # 注册信号处理函数
    signal.signal(signal.SIGTERM, handle_sigterm)
    signal.signal(signal.SIGUSR1, handle_sigterm)
    #==========================================================
    #启动调试，等待调试器附加，正式运行时注释下述两行
    ptvsd.enable_attach(address=('0.0.0.0', 5678))
    ptvsd.wait_for_attach()
    #==========================================================
    #库初始化
    c4py.py_load_so()
    print("c4py version:" + c4py.C4PY_VERSION)
    c4py.global_init()
    #==========================================================
    chl_name = "python采集通道"
    # 设置参数 连接mqtt服务器
    mqttClient = mqtt_connect()
    c4py.set_chl_status(chl_name.encode(),c4py.RUN_STAT_NORMAL)
    print("通道名称:" + chl_name + ";IP端口:" + "47.97.230.45:4020" + ";超时:" + str(5))
    sn = '80C306D021964E03'
    type = 2
    while True:
        send_buff = build_send_buff(type, sn)
        print(json.dumps(send_buff))
        # 发布
        mqttClient.publish("/lqgyy/pub/{}".format(sn), json.dumps(send_buff), 2)
        c4py.msleep(5000)

        if app_exit_signal != 0:
            print("app exit signal: [{}]".format(app_exit_signal))
            break

    # 关闭连接
    mqttClient.loop_stop()
    c4py.global_release()
